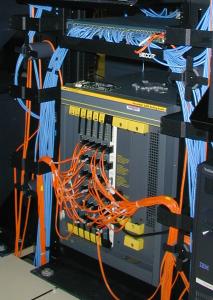

The cluster consists of a few varieties of Ethernet
connected over equipment from Cisco, Alcatel, and

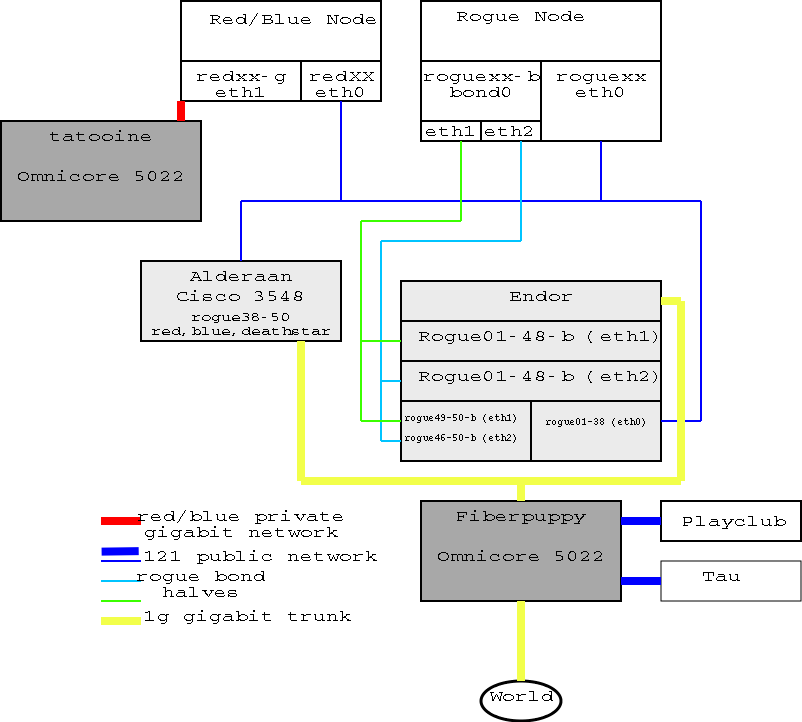

Netgear. Below is a schematic of how the red, blue,
and rogue nodes are connected.
The alphs nodes are connected to a 100mbit Netgear
unmanaged switch that is connected uplinked to a different
part of our network.
Alderaan and Tatooine
